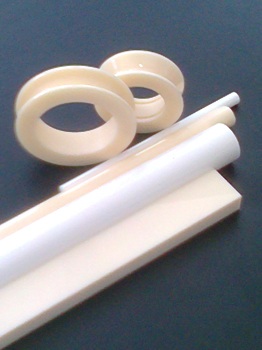

Multi-Lab Introduces Precision Ground and Polished Zirconia Zirconium Oxide (ZrO2) Capabilities

The latest in a long line of new materials, products and services, is the introduction of Precision ground and polished Zirconia  Zirconium Oxide (ZrO2).

The Multi-Lab group, has an enormous amount of experience in grinding lapping and polishing quartz built up over many years. The Board of Multi-lab could see the opportunity immediately with most if not all of the equipment already in place, it was more a case of investment into the correct and separate diamond tooling.

So as to ensure there is no cross contamination of materials, a very big concern when using subcontract grinding companies, many of whom use the same wheels / tooling for all materials, (Hard metals such as Tungsten Carbide Ect) which can result in submicron metal particles being embedded into the surface of the ultra-pure ceramic, This is very often, completely unacceptable for a ceramic / zirconia application, as many are used in the, Chemical, Food and Medical industries.

Zirconium Oxide is a very versatile material, with very specific properties.

Typically Zirconium Oxide used in the production of:

  1. Wear and corrosion  Acid / Alkali resistant pump parts, Shafts, Bearings & Liners  ect
  2. Dosing pumps, pistons and bodies.
  3. Cutting blades, Industrial, as well as kitchen knives
  4. Seals & Valves
  5. Tips for sensors

Zirconia is generally stabilized with either Yttria or Magnesia but Alumina toughened is also available. Some grades can operate in excess of 2000 deg C but with a limited life the higher you go.

Typical advantages over many other ceramic materials:

  • High Toughness
  • High Hardness
  • High Wear resistance
  • High Strength
  • High resistance to fracture with a good modulus of elasticity
  • Low thermal conductivity
  • Excellent resistance to Acid / Alkali corrosion

Due to a combination of high density and very fine particle size, Multi-Lab have been constantly achieving better than Ra 0.025 um.

Zirconia is also, often the choice of ceramic for bonding to steel due to a very similar thermal expansion.
